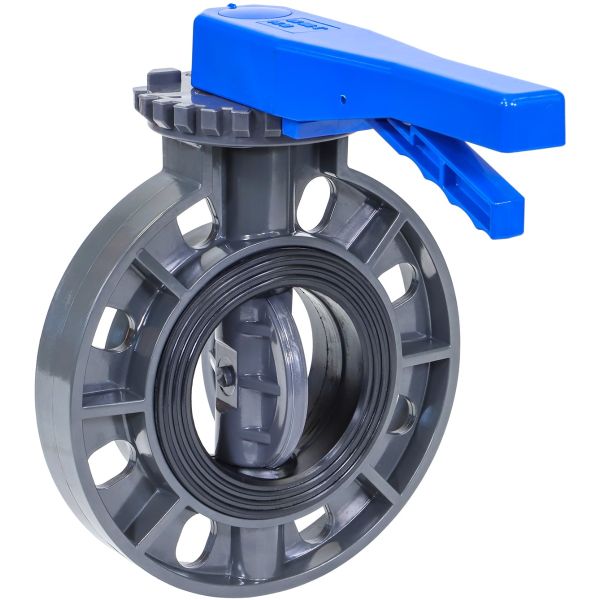

4" PVC Butterfly Valve Wafer Style - EPDM Seat, Lever Operated
was
$127.01
Special Price
$66.71
PVC plastic butterfly valve with EPDM seat, wafer style.
| Size | 4" |
|---|---|
| Body Material | PVC |
| Body Design | Wafer |
| Operation | Lever |
| Connections | Flange / ANSI 125 |
| Pressure Rating | 150 PSI |
| Weight | 5 lbs |
Availability:
In stock
SKU
RKLV4B
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
4" PVC Butterfly Valve Wafer Style - EPDM Seat, Lever Operated
The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed. Needs to be installed with flanges. No need for gaskets since they already have a rubber seal.
Features:
- Excellent corrosion resistance
- Lever handle can lock in 10 positions for throttle control
- Does not require flange gaskets thanks to EPDM seat
Download Specification Sheet

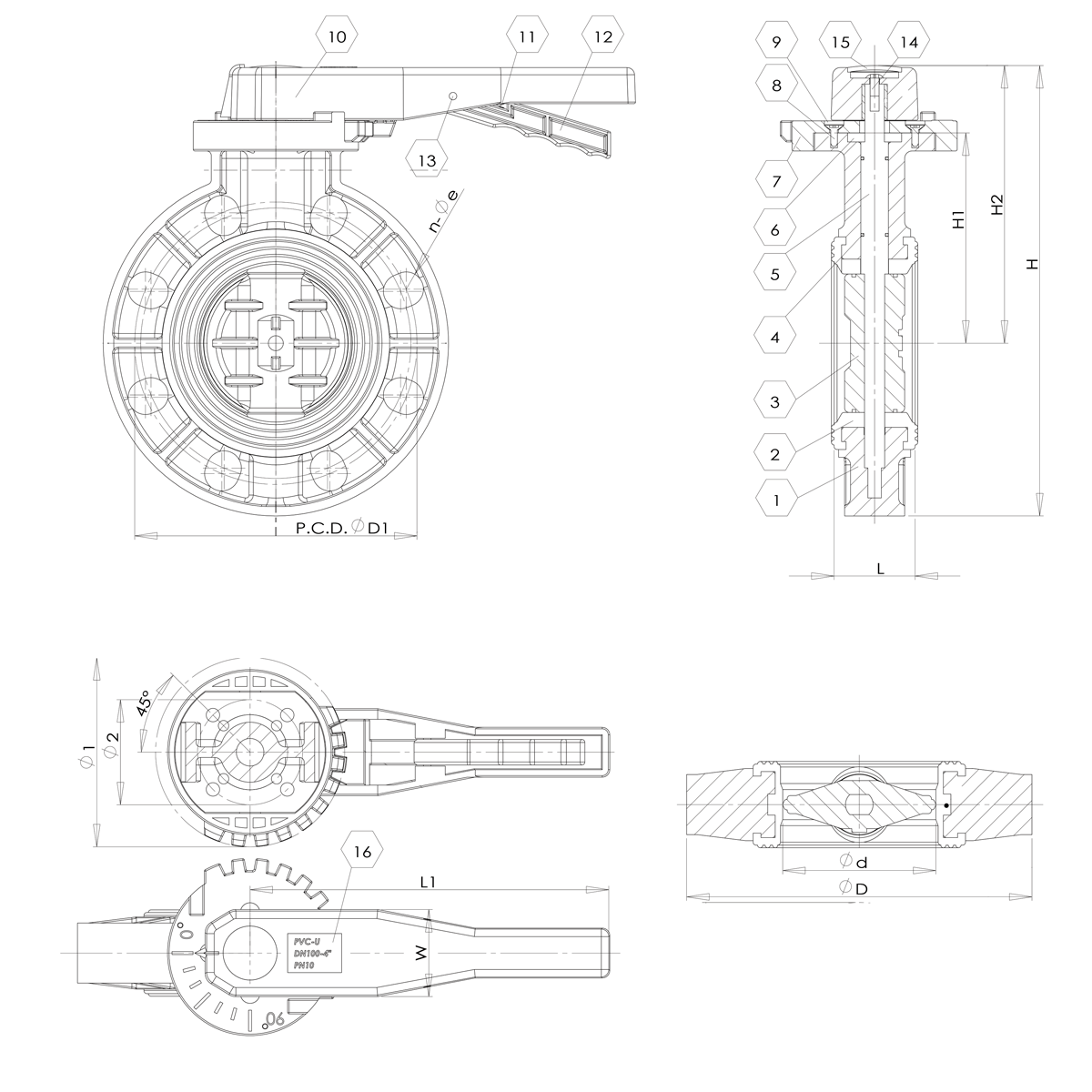

Dimensions - Inches
| Size | DN | n-Øe | P.C.D. D1 | d | D | H1 | H2 | H | L | Ø1 | Ø2 | L1 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 80 | 4-Ø19 | 6 | 3.1 | 7.7 | 4.8 | 6.8 | 10.6 | 1.9 | 4.9 | ISO5211 | 9.4 | 2.2 |
| 4" | 100 | 8-Ø19 | 7.5 | 3.9 | 9 | 5.5 | 7.6 | 12.1 | 2.1 | 4.9 | ISO5211 | 9.4 | 2.2 |
| 6" | 150 | 8-Ø23 | 9.5 | 5.8 | 11.3 | 7.1 | 9.4 | 15.1 | 2.8 | 6.7 | ISO5211 | 12.2 | 2.8 |
Dimensions - Millimeters
| Size | DN | n-Øe | P.C.D. D1 | d | D | H1 | H2 | H | L | Ø1 | Ø2 | L1 | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 80 | 4-Ø19 | 152 | 78 | 196 | 120 | 172 | 270 | 49 | 124 | ISO5211 | 240 | 55 |
| 4" | 100 | 8-Ø19 | 191 | 98 | 228 | 140 | 194 | 308 | 54 | 124 | ISO5211 | 240 | 55 |
| 6" | 150 | 8-Ø23 | 241 | 146 | 287 | 181 | 239 | 382 | 70 | 170 | ISO5211 | 310 | 72 |

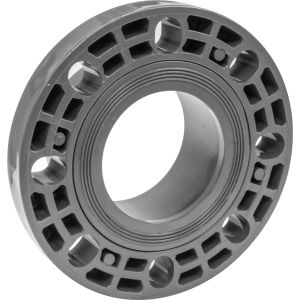

| Flange Connection | flange_connection |
|---|
