2" Cast Iron Wafer Check Valve - Double Wing
4" Cast Iron Wafer Check Valve - Double Wing
3" Cast Iron Wafer Check Valve - Double Wing
was
$166.92
Special Price
$69.55
Dual plate wafer check valve with EPDM seat, epoxy coated cast iron body, and nickel plated ductile iron discs.
Size |
3" |
Mechanism |
Dual Swing Plates (Spring Loaded) |
Connections |
Flange / ANSI 125/150 |
Pressure Rating |
150 PSI |
Length (End to End) |
2.5" |
Weight |
7 lbs |

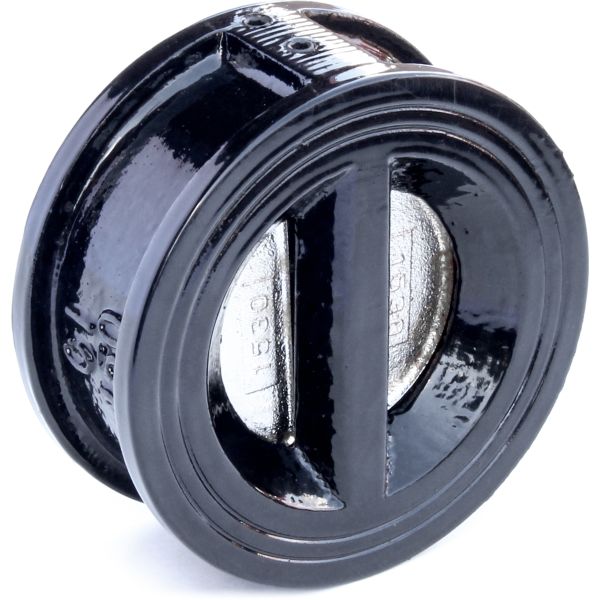

3" Cast Iron Wafer Check Valve - Double Wing
Features:
- Compact wafer design can be installed in tight spaces
- Can be mounted horizontally or vertically
- Fusion-Bonded Epoxy Coating
Material:
- Body: Cast Iron
- Disc: Nickel Plated Ductile Iron
- Seat: EPDM
- Stem: Stainless Steel SS416
- Spring: Stainless Steel AISI 304
- Paint: Fusion-Bonded Epoxy
Dimensions - Inches
Size | A | B | C | D | G |
---|
2" | 4.1 | 2.6 | 1.7 | 2.3 | 0.8 |
3" | 5.4 | 3.7 | 2.5 | 3.4 | 3 |
4" | 6.9 | 4.6 | 2.5 | 4.3 | 3.8 |
6" | 8.8 | 6.7 | 3 | 6.7 | 5.7 |
8" | 11 | 8.8 | 3.5 | 8.8 | 7.6 |
10" | 13.4 | 10.4 | 4.5 | 10.4 | 9.4 |
12" | 16.1 | 12.2 | 4.5 | 12.2 | 10.2 |
Dimensions - Millimeters
Size | A | B | C | D | G |
---|
2" | 105 | 65 | 43 | 59 | 20 |
3" | 137 | 94 | 64 | 88 | 76 |
4" | 175 | 117 | 64 | 110 | 97 |
6" | 222 | 170 | 76 | 170 | 145 |
8" | 279 | 224 | 89 | 222 | 193 |
10" | 340 | 265 | 114 | 264 | 239 |
12" | 410 | 310 | 114 | 310 | 259 |
