3" Single Union PVC Ball Valve – 3" FNPT | RK1BV3OT
was
$135.83
Special Price
$74.92

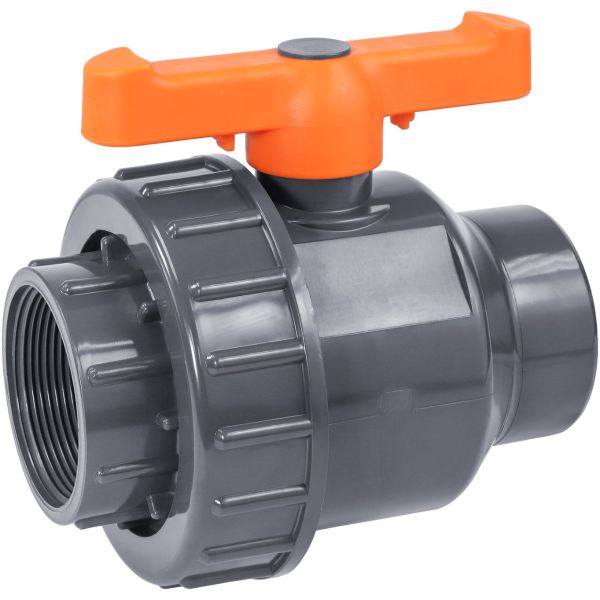

3" single union PVC ball valve with 3" FNPT connection and orange handle — built for on/off flow control in agricultural irrigation mains, pump stations, and chemical injection lines. Rated to 145 PSI with TPE seals and O-ring for leak-free, low-torque operation. The single union end allows removal from the line for service or replacement without cutting the pipe.
| Connection | 3" FNPT |
|---|---|
| Maximum Pressure | 145 PSI |
| Body Material | PVC |
| Seal Material | TPE with O-ring |
| Handle Color | Orange |
| Operation | Quarter-turn handle |
Availability:
In stock
SKU
RK1BV3OT
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
3" Single Union PVC Ball Valve – 3" FNPT | RK1BV3OT
The RK1BV3OT is a 3" single union PVC ball valve for commercial agricultural irrigation, pump stations, filtration headers, and chemical injection systems. Rated to 145 PSI. The single union end allows the valve to be disconnected from the downstream piping for inspection, seal replacement, or line servicing without cutting pipe or disturbing upstream connections.
Features and Benefits
- Quarter-turn operation — fast shutoff with open/closed position clearly visible; works with wet or gloved hands
- TPE seals with O-ring — cushioning effect ensures leak-free seal with low, consistent operating torque
- Union nut load isolation — clamping force from the union nut does not transfer to the ball or seals, extending valve service life
- PVC body — chemical and corrosion resistant; UV-stabilized color resists degradation in field conditions
- Orange handle — high-visibility for quick identification of valve position in crowded manifolds
Download Specification Sheet
Dimensions - Inches
| Size | Threads Per Inch | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 1-1/2" | 11.5 | 1.4 | 3.7 | 1.3 | 3.9 | 6.6 | 4.8 | 3.6 |
| 2" | 11.5 | 1.9 | 4.6 | 1.4 | 4.7 | 6.5 | 5.9 | 3.9 |
| 3" | 8 | 3 | 7.1 | 1.8 | 7.1 | 9.2 | 7.9 | 5.5 |
Dimensions - Millimeters
| Size | Threads Per Inch | dk | D | l | L | Lt | E | H |
|---|---|---|---|---|---|---|---|---|
| 1-1/2" | 11.5 | 37 | 94 | 32 | 98 | 167 | 121 | 91 |
| 2" | 11.5 | 50 | 116 | 35 | 119 | 165 | 150 | 98 |
| 3" | 8 | 76 | 179 | 44 | 180 | 234 | 200 | 139 |
Spare Parts Available:
- RKBV3O(T) TPU seals: RKBV3O-TPU
- RKBV3O(T) Union O-ring: RKBV3O-ORING
