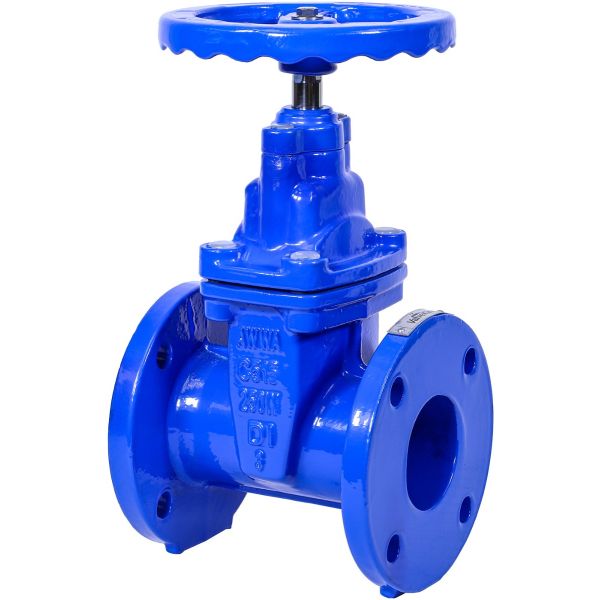

3" Ductile Iron Gate Valve - Flanged, NRS, Resilient Wedge, AWWA C515
was
$550.47
Special Price
$234.56
3" ductile iron resilient wedge gate valve with non-rising stem (NRS), flanged connections, and handwheel. The EPDM-covered ductile iron wedge provides positive seating and resists high differential pressure - debris that would damage a metal-seated valve simply compresses into the rubber and seals. Epoxy coated body. AWWA C515 compliant.
| Size | 3" |
|---|---|
| Design Standard | AWWA C515 |
| Body Material | Ductile Iron (Epoxy Coated) |
| Wedge | EPDM Covered Ductile Iron (Resilient) |
| Stem | Non-Rising (NRS) |
| Connections | Flanged (ANSI 125/150) |
| Operation | Handwheel |
Availability:
In stock
SKU
RKT3
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
3" Ductile Iron Gate Valve, FLG, NRS, Resilient Wedge, Handwheel, AWWA C515
On a standard gate valve with only a metal seal there needs to be a impression for the gate to seat to and make a seal. This impression can get dirt, pebbles, sand or other debris trapped in it, eventually losing its ability to seal 100%. The advantage our resilient seated gate valve has is that the opening in the valve is completely smooth, preventing debris from getting stuck. Even with some impurities the rubber surface will be able to conform and seal.
Features:
- Non-Rising Stem
- Resilient Wedge
- Fusion-Bonded Epoxy Coating Inside & Outside
- Flanges Conform to ANSI B16.1
Material:
- Body: Ductile Iron
- Bonnet: Ductile Iron
- Wedge: EPDM Covered Ductile Iron
- Stem: Stainless Steel SS420
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | DN | L | D | F | C | n-d |
|---|---|---|---|---|---|---|
| 2" | 1.9 | 7 | 5.9 | 4.8 | 0.6 | 4-19 (3/4") |
| 3" | 3.1 | 8 | 7.5 | 6 | 0.8 | 4-19 (3/4") |
| 4" | 3.9 | 9 | 9 | 7.5 | 0.9 | 8-19 (3/4") |
| 6" | 5.9 | 10.5 | 11 | 9.5 | 1 | 8-22 (7/8") |
| 8" | 7.9 | 11.5 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") |
| 10" | 9.8 | 13 | 16 | 14.3 | 1.2 | 12-25 (1") |
| 12" | 11.8 | 14 | 19 | 17 | 1.3 | 12-25 (1") |
Dimensions - Millimeters
| Size | DN | L | D | F | C | n-d |
|---|---|---|---|---|---|---|
| 2" | 50 | 178 | 150 | 120.5 | 15.9 | 4-19 (3/4") |
| 3" | 80 | 203 | 190 | 152.5 | 19.1 | 4-19 (3/4") |
| 4" | 100 | 229 | 229 | 190.5 | 23.9 | 8-19 (3/4") |
| 6" | 150 | 267 | 279 | 241.5 | 25.4 | 8-22 (7/8") |
| 8" | 200 | 292 | 343 | 298.5 | 28.6 | 8-22 (7/8") |
| 10" | 250 | 330 | 406 | 362.5 | 30.2 | 12-25 (1") |
| 12" | 300 | 356 | 483 | 432 | 31.8 | 12-25 (1") |
