3" Double Union PVC Ball Valve Flanged
was
$143.56
Special Price
$94.08

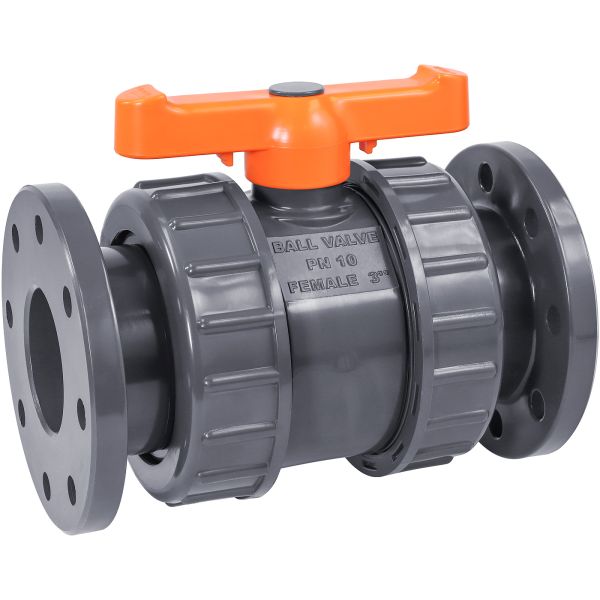

3" Double Union PVC Ball Valve Flanged with Orange Handle
| Inlet / Outlet | 3" Flange, AS 2129 Specs, (146mm PCD) |
|---|---|
| Maximum Pressure | 145 PSI |
Availability:
In stock
SKU
RKBV3OF
3" Double Union PVC Ball Valve Flanged with Orange Handle
Features:
- AS 2129 Flange Specs
- Quarter-turn handle operated ball valve
- TPE seals with O-ring gives cushioning effect that ensures leakage free and low fixed torque
- Union nut load does not transfer onto ball
- Chemical and corrosion resistant, color UV stabilized
- Built-in spanner wrench on handle for valve dissembly/assembly
- True union with flanged end design for easier installation or repair, without expanding the pipe system
Download Specification Sheet

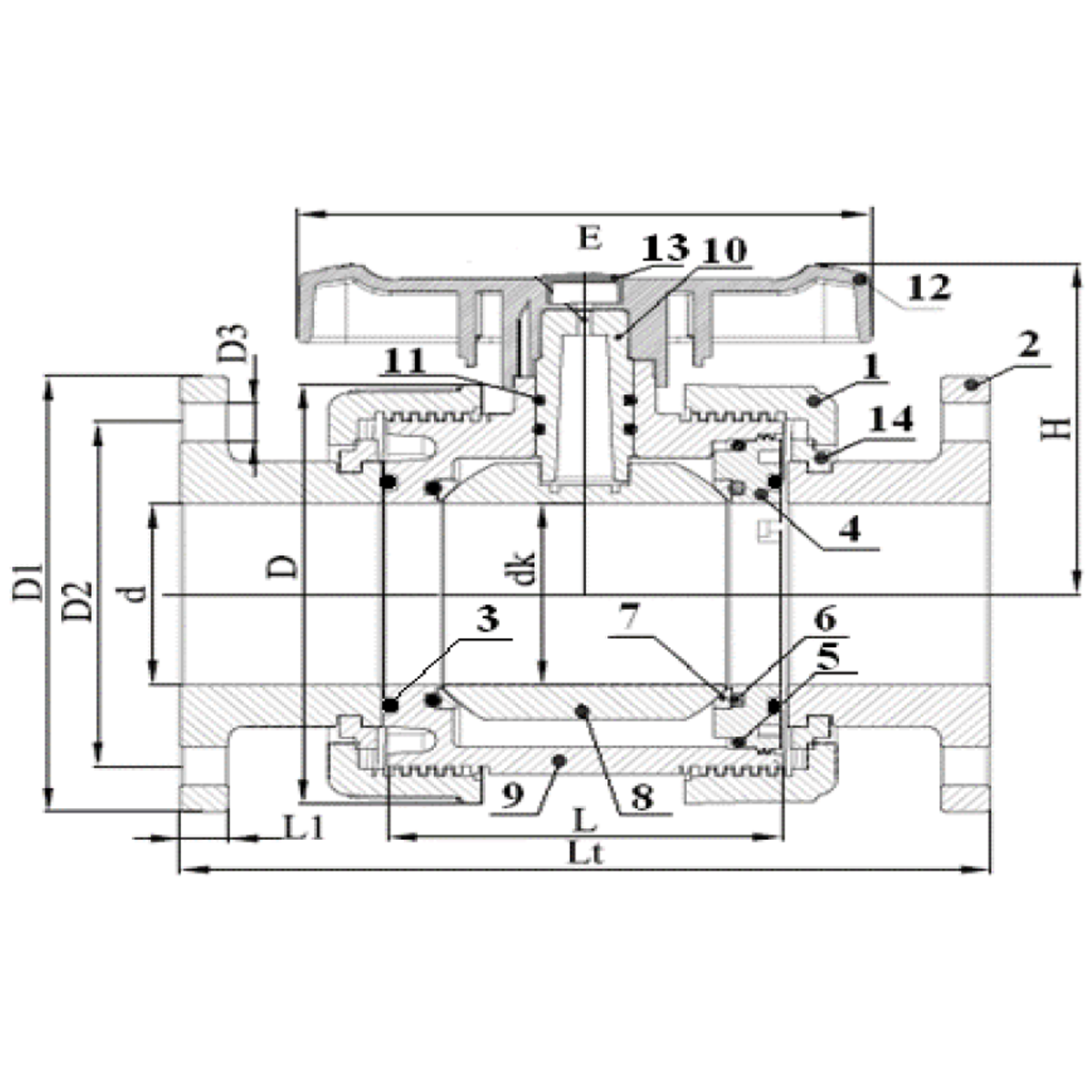

Dimensions - Inches
| Size | d | dk | D | D1 | D2 | L | L1 | Lt | E | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 3 | 3 | 7.1 | 7.3 | 5.7 | 5.4 | 0.6 | 10.8 | 7.9 | 5.5 |
Dimensions - Millimeters
| Size | d | dk | D | D1 | D2 | L | L1 | Lt | E | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 76 | 76 | 179 | 184 | 145 | 138 | 16 | 275 | 200 | 139 |
Spare Parts Available:
- RKBV3O(T/F) TPU seals: RKBV3O-TPU
- RKBV3O(T/F) Union O-ring: RKBV3O-ORING
