3/4" MNPT Senninger 40 Series Impact Sprinkler 23° Part Circle - #10-#13
From $26.20 was $32.66
To $27.64 was $34.79
Senninger 40 Series 3/4" MNPT impact sprinkler for commercial agriculture. 3.8-8.8 GPM, 41-51 ft. radius, 30-55 PSI. Part circle for border rows and field edges. Color-coded hand-tight nozzles with integrated stream straightening vane. Built-in hex wrench. Insect-proof design. Made in the USA.
| Connection | 3/4" MNPT |
|---|---|
| Flow | 3.8-8.8 GPM |
| Throw Radius | 41-51 ft. |
| Operating Pressure | 30-55 PSI |
| Trajectory Angle | 23° |
| Coverage Pattern | Part Circle |
| Drive Mechanism | Spring Arm Impact |
| Nozzle Range | #10-#13 |
See Nozzle Performance Chart
In stock
SKU
4123PC-1-34M
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days

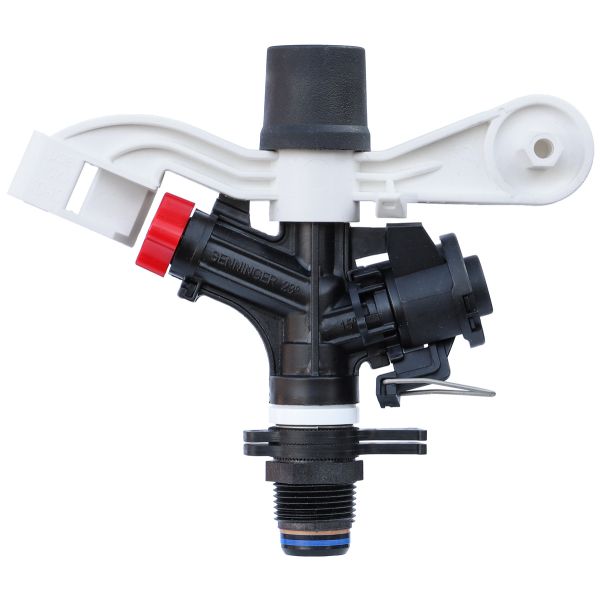

4123PC-1-34M - Senninger 40 Series 3/4" MNPT Impact Sprinkler - 23° Part Circle
The Senninger 40 Series is a 3/4" MNPT plastic impact sprinkler designed for commercial agriculture. It delivers 3.8-8.8 GPM over a 41-51 ft. throw radius at 30-55 PSI. Part circle for border rows and field edges.
Key Features and Benefits
- 3.8-8.8 GPM flow range - Nozzle sizes #10-#13 let you match output to your water supply and crop requirements
- 41-51 ft. throw radius - Covers large areas efficiently from each sprinkler position
- 23° trajectory - Balanced angle provides good distance while managing wind drift
- Part Circle operation - Adjustable arc directs water where needed, avoiding roads and structures
- Hand-tight nozzles - Color-coded, tool-free nozzle changes in the field with integrated stream straightening vane
- Built-in hex wrench - Maintenance and adjustment without carrying extra tools
- Insect-proof design - Prevents insects from nesting inside the sprinkler body
- Heavy-duty plastic construction - Outlasts brass at lower cost; corrosion-resistant
- Made in the USA - Senninger quality and manufacturing
Materials
- Body: Heavy-Duty Plastic
- Spring: Stainless Steel
- Pin: Stainless Steel

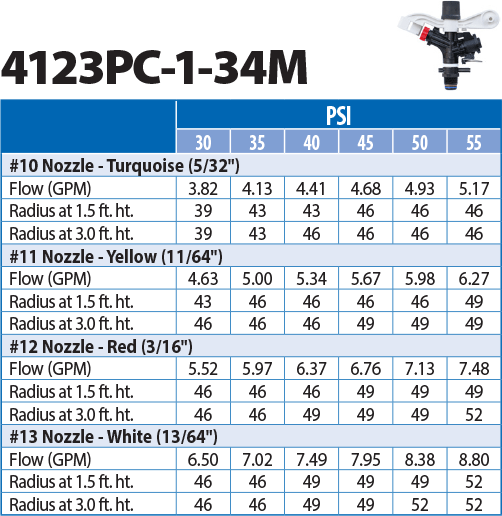

Nozzle Performance Chart
| Base | 3/4" MNPT |
|---|---|
| Flow | 3.8-8.8 GPM |
| Throw Radius | 41-51 ft. |
| Operating Pressure | 30-55 PSI |
| Trajectory Angle | 23° |
| Operation | Part Circle |
| Drive Mechanism | Spring Arm Impact |
