3/4" Plastic Swivel Elbow for Quick Coupling - FNPT x MNPT

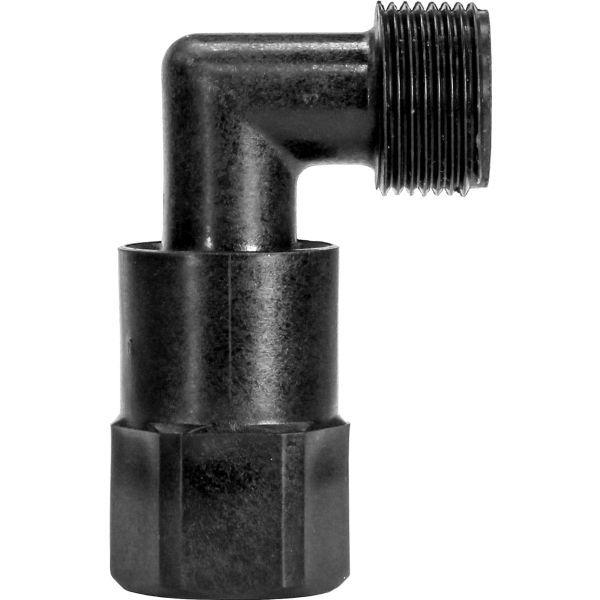

RKQPEL-3/4 - 3/4" Plastic Swivel Elbow for Quick Coupling Systems

This 3/4" plastic swivel elbow installs between a quick coupling key and the sprinkler head. The swivel allows the elbow to rotate freely, so you can orient the sprinkler vertically regardless of the angle at which the key enters the valve. This is especially useful when the quick coupling valve is installed at ground level and you need the sprinkler to point straight up.

Key Features and Benefits

• 90-degree swivel - Allows the sprinkler to be oriented vertically even when the key enters at an angle
• Free rotation - Swivel joint rotates to find the correct orientation during setup
• 3/4" FNPT x MNPT - Female thread connects to the key outlet; male thread accepts the sprinkler base
• Plastic construction - Lightweight, corrosion-resistant

Installation

Thread the FNPT end onto the 3/4" NPT outlet of your quick coupling key. Thread your sprinkler onto the MNPT end. The swivel allows the sprinkler to rotate into the vertical position after the key is inserted into the valve.
