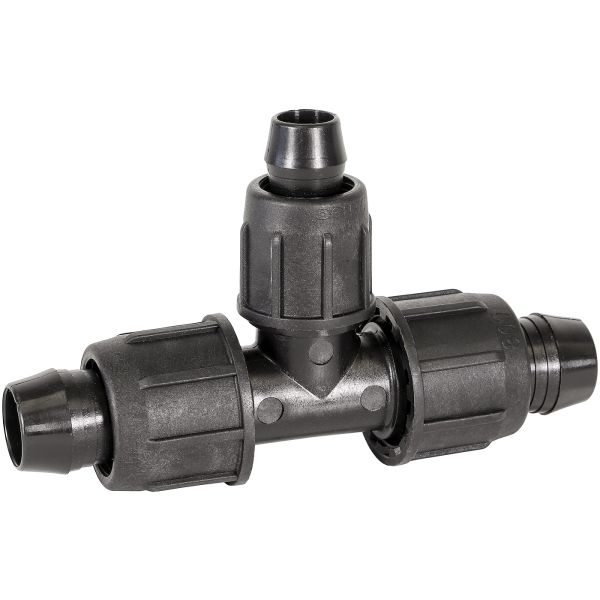

Perma-Loc Reducing Tee 3/4" Run x 5/8" Branch – 800 Series/600 Series Twist-Lock Fitting
$5.92
Tees off a 3/4" (3/4 in. ID tubing) mainline to a 5/8" (5/8 in. ID tubing) lateral with tool-free Perma-Loc twist-lock connections on all three ports. Eliminates barb reducers and clamps when splitting tubing sizes in commercial drip and poly-pipe irrigation layouts.
| SKU | RKPLT8-6 |
|---|---|
| Run (inline) Size | 3/4" Perma-Loc (800 Series) |
| Branch (side) Size | 5/8" Perma-Loc (600 Series) |
| Run Compatible Tubing | 3/4 in. ID tubing |
| Branch Compatible Tubing | 5/8 in. ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None |
| Reusable | Yes |
Availability:
Out of stock
SKU
RKPLT8-6
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKPLT8-6 – Perma-Loc Reducing Tee 3/4" Run x 5/8" Branch
The RKPLT8-6 is an Irritec Perma-Loc reducing tee with a 3/4" (800 Series) straight-through run and a 5/8" (600 Series) side branch. All three ports use the Perma-Loc twist-lock mechanism – no barbs, clamps, or tools required. Suited for commercial drip irrigation systems where a mainline must branch to a smaller (or larger) lateral size, such as transitioning from a farm mainline to row or bed laterals.
Key Features
- Reducing tee in one fitting – 3/4" straight run with 5/8" branch eliminates separate reducer adapters
- Twist-lock on all three ports – grips each tubing OD without barbs or clamps
- Tool-free installation and removal – minimizes labor time during system layout and repairs
- Reusable and field-serviceable – reconfigure laterals or zone branches without cutting tubing
- UV-stabilized body – durable under direct sun in open-field installations
- Mates with full Perma-Loc range – compatible with all couplers, elbows, end caps, and valves in the system
Specifications
| SKU | RKPLT8-6 |
|---|---|
| Run (inline) Size | 3/4" Perma-Loc (800 Series) |
| Branch (side) Size | 5/8" Perma-Loc (600 Series) |
| Run Compatible Tubing | 3/4 in. ID tubing |
| Branch Compatible Tubing | 5/8 in. ID tubing |
| Material | UV-stabilized engineering-grade plastic |
| Tool Required | None |
| Reusable | Yes |
| Perma-Loc Heavy Wall Driplines and Hose Fittings | ||||||
|---|---|---|---|---|---|---|
| Nominal Size | Series Number | Acceptable I.D. | Acceptable Wall Thickness | Compatible IrrigationKing Tubing Size |
||
| 16mm | 500 | 0.510" - 0.580" | 12.9 - 14.7 mm | 0.035" - 0.055" | 0.89 - 1.40 mm | 1/2" |
| 17mm | 550 | 0.540" - 0.620" | 13.7 - 15.7 mm | 0.045" - 0.060" | 1.14 - 1.50 mm | - |
| 18mm | 600 | 0.590" - 0.630" | 15.0 - 16.0 mm | 0.025" - 0.050" | 0.64 - 1.27 mm | 5/8" |
| 20mm | 700 | 0.685" - 0.740" | 17.4 - 18.9 mm | 0.040" - 0.055" | 1.00 - 1.40 mm | - |
| 22mm | 800 | 0.790" - 0.845" | 20.0 - 21.5 mm | 0.045" - 0.065" | 1.14 - 1.65 mm | 3/4" |
| 26mm | 1000 | 1.025" - 1.085" | 26.0 - 27.6 mm | 0.065" - 0.075" | 1.65 - 1.91 mm | 1" |
| Size / Series Number | 600 Series (5/8"), 800 Series (3/4") |
|---|
