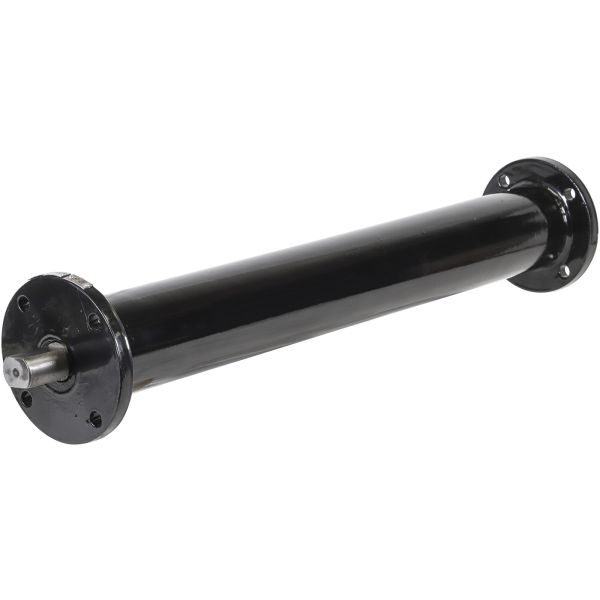

24" Stem Extension for 10" Butterfly Valves
was
$270.09
Special Price
$181.25
24" stem extension for 10" butterfly valves. Raises the lever handle above grade for buried valve installations, valve boxes, or wherever the valve body is not directly accessible. Installs between the valve body and the lever handle.
| Extension Length | 24" |
|---|---|
| Compatible Valve Size | 10" |
| Type | Stem Extension with Lever Handle |
Availability:
In stock
Only 5 left
SKU
VK-EXT-24-10
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
24" Stem Extension for 10" Butterfly Valves
Dimensions - Inches
| Valve Size | A | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|
| 2" & 3" | 24 | 0.5 | 0.4 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 4" | 24 | 0.6 | 0.5 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 6" | 24 | 0.8 | 0.6 | 2.8 | 3.6 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 8" | 24 | 0.9 | 0.7 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 10" | 24 | 1.1 | 0.9 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 | ||||||
| 12" | 24 | 1.3 | 0.9 | 4 | 4.9 | 0.4 |
| 36 | ||||||
| 48 | ||||||
| 60 |
