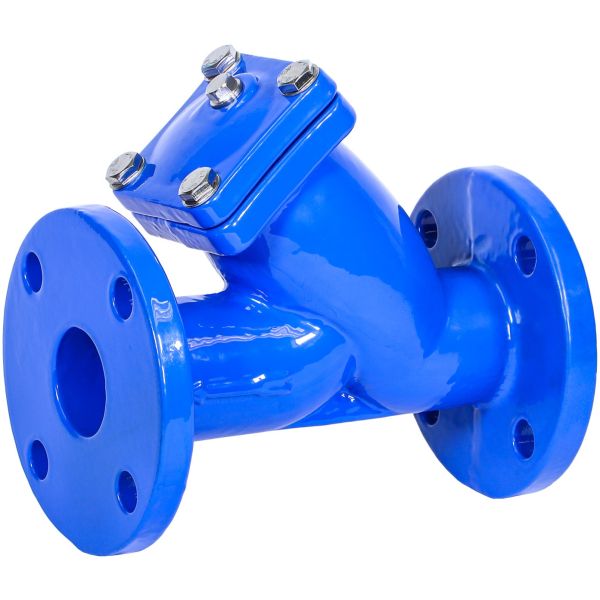

2" Y Strainer - Ductile Iron, Flanged, SS304 Screen
was
$182.64
Special Price
$135.35
Ductile iron flanged Y-strainer with epoxy coating and stainless steel screen, nuts, and bolts.
| Size | 2" |
|---|---|
| Screen | 10 Mesh / 2000 Micron |
| Connections | Flanged / ANSI 125 |
| Pressure Rating | 200 PSI |
| Temperature Rating | -4° to 180° F |
| Length (End to End) | 8.9" |
| Weight | 20 lbs |
Availability:
In stock
SKU
VK-YS-302
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
2" Y Strainer - Ductile Iron, Flanged, SS304 Screen
Features:
- Ductile Iron Body & Cover
- Fusion-Bonded Epoxy Coating Inside & Outside
- Flanges Conform to ANSI B16.1
- 2mm Screen Hole Inlet
Material:
- Body: Ductile Iron
- Cover: Ductile Iron
- Screen: Stainless Steel SS304
- Bolts, Nuts & Washers: Stainless Steel SS304 (A2-70)
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | L | D | K | B | n-d | H (±¾") |
|---|---|---|---|---|---|---|
| 2" | 8.9 | 6 | 4.8 | 0.6 | 4-19 (3/4") | 5.3 |
| 3" | 11.5 | 7.5 | 6 | 0.8 | 4-19 (3/4") | 6.8 |
| 4" | 13.9 | 9 | 7.5 | 0.9 | 8-19 (3/4") | 8.1 |
| 6" | 18.5 | 11 | 9.5 | 1 | 8-22 (7/8") | 11 |
| 8" | 21.4 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") | 13.8 |
| 10" | 26 | 16 | 14.3 | 1.2 | 12-25 (1") | 17.2 |
| 12" | 30 | 19 | 17 | 1.3 | 12-25 (1") | 19.9 |
Dimensions - Millimeters
| Size | DN | L | D | K | B | n-d | H (±20) |
|---|---|---|---|---|---|---|---|
| 2" | 50 | 225 | 152 | 120.5 | 16 | 4-19 (3/4") | 135 |
| 3" | 80 | 292 | 191 | 152.5 | 19 | 4-19 (3/4") | 172 |
| 4" | 100 | 352 | 229 | 190.5 | 24 | 8-19 (3/4") | 207 |
| 6" | 150 | 470 | 279 | 241.5 | 25.5 | 8-22 (7/8") | 279 |
| 8" | 200 | 543 | 343 | 298.5 | 29 | 8-22 (7/8") | 350 |
| 10" | 250 | 660 | 406 | 362 | 30.5 | 12-25 (1") | 436 |
| 12" | 300 | 762 | 483 | 432 | 32 | 12-25 (1") | 506 |
