2" PVC Butterfly Valve Wafer Style - Stainless Steel Disc, EPDM Seat, Lever Operated
$58.76
Heavy-duty 2" PVC butterfly valve with stainless steel disc and EPDM rubber seat in a wafer-style body. The lever handle locks in 10 positions for precise flow throttling — ideal for balancing zones on large irrigation systems. The EPDM seat eliminates the need for flange gaskets, simplifying installation. Excellent corrosion resistance makes this valve well suited for agricultural water, fertigation, and chemigation applications.
| Size | 2" |
|---|---|
| Body Material | PVC |
| Disc Material | Stainless Steel |
| Seat Material | EPDM |
| Body Design | Wafer |
| Operation | Lever |
| Connections | Flange / ANSI 125 |
| Pressure Rating | 145 PSI |
| Length (Face to Face) | 1.8125" |
| Temperature Range | 23°F - 122°F |
Availability:
In stock
SKU
RKHB2
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
2" PVC Butterfly Valve Wafer Style - Stainless Steel Disc, EPDM Seat, Lever Operated
The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed. Needs to be installed with flanges. No need for gaskets since they already have a rubber seal.
Features:
- Excellent corrosion resistance
- Lever handle can lock in 10 positions for throttle control
- Does not require flange gaskets thanks to EPDM seat
Download Specification Sheet

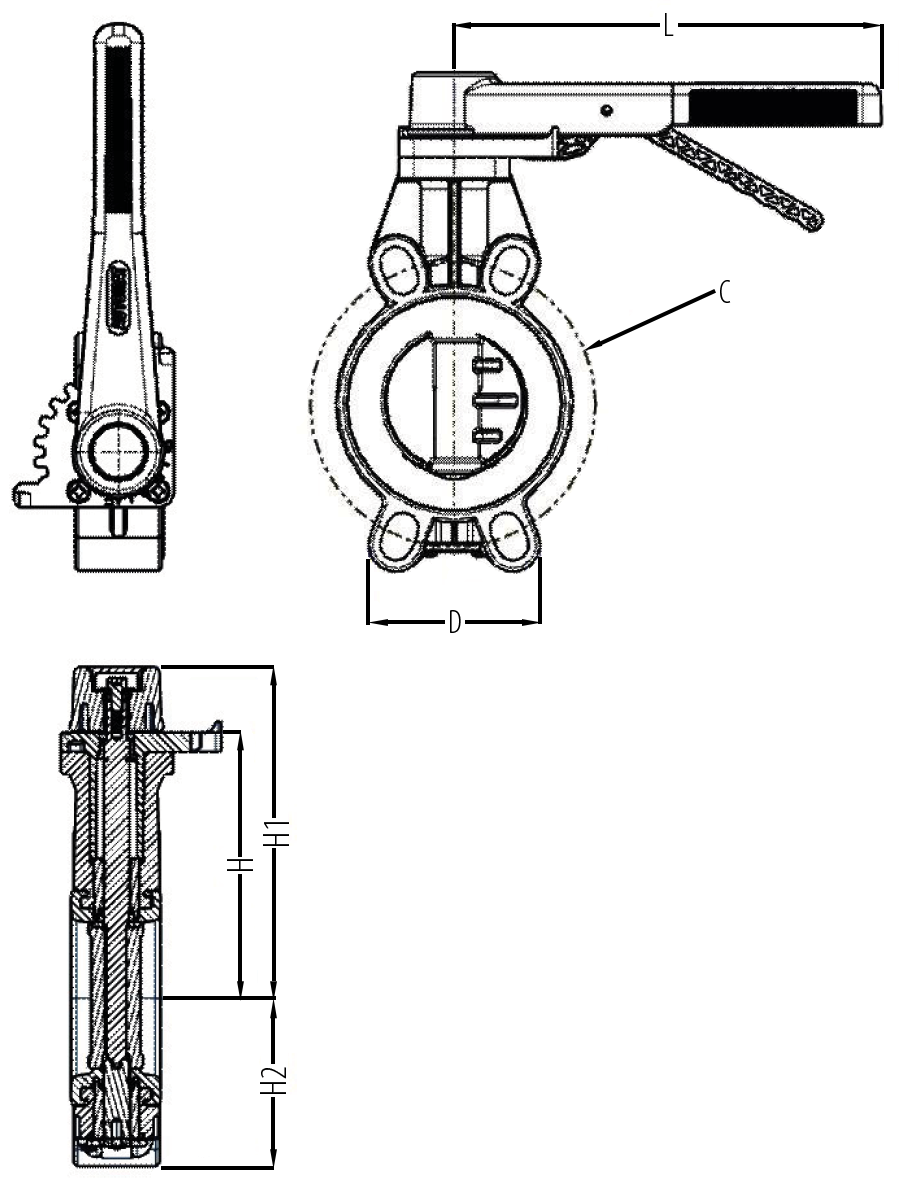

Dimensions - Inches
| Size | D | H1 | H2 | H | L | C (PCD) |
|---|---|---|---|---|---|---|
| 2" | 4.609 | 5.125 | 2.797 | 6.50 | 9.016 | 4.766 |
| 3" | 5.047 | 5.672 | 3.578 | 7.094 | 9.016 | 6.141 |
Dimensions - Millimeters
| Size | D | H1 | H2 | H | L | C (PCD) |
|---|---|---|---|---|---|---|
| 50 | 117 | 130 | 71 | 165 | 229 | 121 |
| 80 | 128 | 144 | 91 | 180 | 229 | 156 |

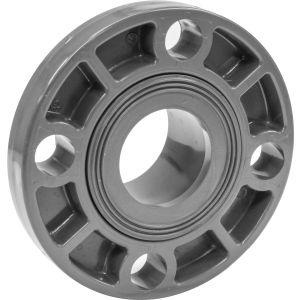

| Flange Connection | flange_connection |
|---|
