2" T Disc Filter – 120 Mesh, 130 GPM, 2" MNPT, Stainless Clamp

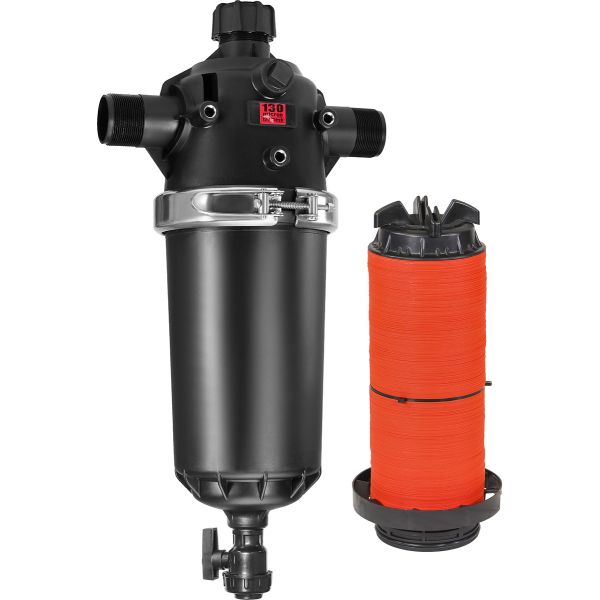

RKD230N – 2" Large-Body T Disc Filter for High-Flow Commercial Irrigation

The RKD230N is a large-body 2" T-style disc filter engineered for high-flow commercial and agricultural irrigation mainlines. With a nominal rating of 130 GPM (155 GPM maximum), a 185 in² disc filtration area, and a glass-reinforced polypropylene body secured by a stainless steel clamp, the RKD230N is built to handle the demands of large farm systems, greenhouse operations, and municipal irrigation networks. The T-style body provides vertical cartridge access for straightforward field maintenance.

Key Features and Benefits

• 185 in² filtration area — very large disc surface significantly extends cleaning intervals compared to smaller T or Y filters, reducing downtime on active irrigation systems
• 130–155 GPM flow range — serves high-demand mainlines and pump stations where smaller 2" filters are undersized
• 110 PSI working pressure — handles standard commercial pump discharge pressures across most field and greenhouse applications
• Glass-reinforced polypropylene body — resists chemical corrosion, UV exposure, and mechanical stress common in outdoor agricultural environments
• Stainless steel clamp — corrosion-resistant fastening ensures reliable sealing and long service life in field conditions
• T-Style body — vertical cartridge orientation allows top-access removal and cleaning without disturbing inline pipe connections
• Replacement cartridges available — 80, 120, and 150 mesh options (RKD230N-CART80, RKD230N-CART120, RKD230N-CART150) for matching filtration to water quality requirements

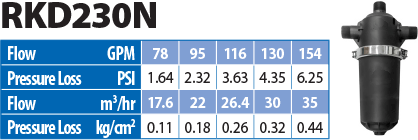

Technical Specifications

Spare Parts Available:

• O-Ring Large Filter Main Body (D230N, D350N, D490N, TS230, TS340, TS350, TS225NSA, TS340NSA, RKTS490, HC225, HC350): RKT-ORING
• Stainless Clamp Main Body (D230N, D350N, D490N, TS230, TS340, TS350, TS225NSA, TS340NSA, RKTS490, HC225, HC350) : RKSS-CLAMP
• RKTS-CARTORING (TS230, TS340, TS350, TS225NSA, TS340NSA, RKTS490): RKTSCART-ORING
• 80 Mesh - Disc Filter Cartridge (RKD230N): RKD230N-CART80
• 120 mesh - Disc Filter Cartridge (RKD230N): RKD230N-CART120
• 150 Mesh - Disc Filter Cartridge (RKD230N): RKD230N-CART150
