2" Cast Iron Hydraulic Control Valve - Diaphragm Actuated - NPT
$225.00
2" cast iron hydraulic control valve with NPT connection. Diaphragm-actuated, line-pressure-driven valve body that serves as the base for building custom hydraulic control configurations. Add pilot valves, solenoids, or pressure reducing pilots to create the exact control function your system needs. Heavy-duty cast iron body (GG20/25). Up to 232 PSI. Max recommended flow 264 GPM.
| Size | 2" |
|---|---|
| Connection | NPT |
| Max Operating Pressure | 232 PSI |
| Max Recommended Flow | 264 GPM |
| Body Material | Cast Iron (GG20/25) |
| Operation | Hydraulic diaphragm (pilot-controlled) |
Availability:
In stock
SKU
MCV-PA2
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days

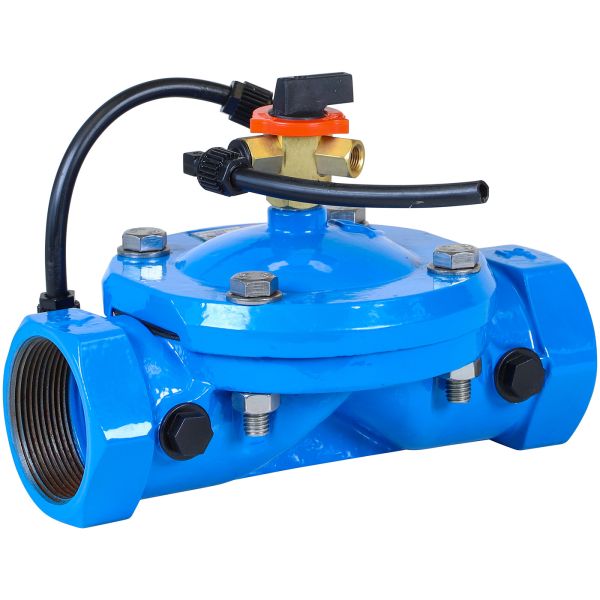

MCV-PA2 - 2" Cast Iron Hydraulic Control Valve
This 2" cast iron hydraulic control valve is a diaphragm-actuated valve body with NPT connections. It functions as the base unit for building custom hydraulic control configurations. By adding different pilot valves and accessories, you can create pressure reducing, pressure sustaining, flow control, or on/off control functions.
Key Features
- Modular design - Add pilot valves to create pressure reducing, sustaining, or flow control functions
- Hydraulic operation - Line-pressure-driven, no external power required
- Cast iron body (GG20/25) - Heavy-duty construction for commercial and agricultural installations
- NPT connection - Standard pipe or flange connections
- Up to 232 PSI - Rated for high-pressure mainline systems
