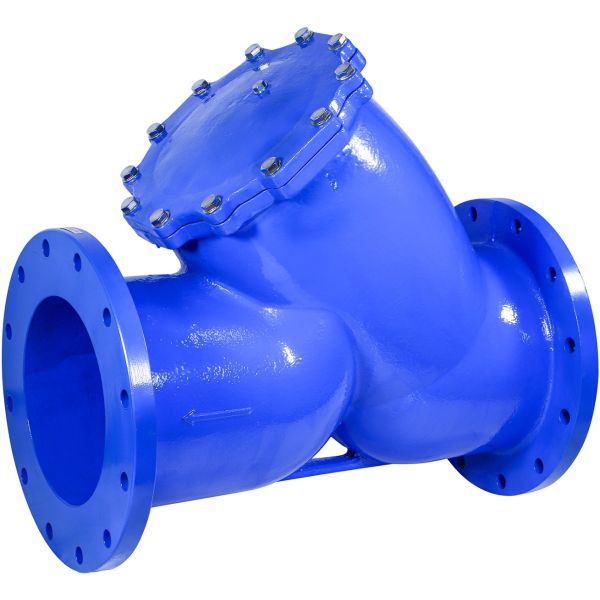

12" Y Strainer - Ductile Iron, Flanged, SS304 Screen
was
$2,879.08
Special Price
$2,406.51
Ductile iron flanged Y-strainer with epoxy coating and stainless steel screen, nuts, and bolts.
| Size | 12" |
|---|---|
| Screen | 4 Mesh / 5000 Micron |
| Connections | Flanged / ANSI 125 |
| Pressure Rating | 200 PSI |
| Temperature Rating | -4° to 180° F |
| Length (End to End) | 30" |
| Weight | 408 lbs |
Availability:
In stock
Only 3 left
SKU
VK-YS-312
Ships Same Day (Pallet)
All pallet orders placed by 11 AM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-5 business days
12" Y Strainer - Ductile Iron, Flanged, SS304 Screen
Features:
- Ductile Iron Body & Cover
- Fusion-Bonded Epoxy Coating Inside & Outside
- Flanges Conform to ANSI B16.1
- 5mm Screen Hole Inlet
Material:
- Body: Ductile Iron
- Cover: Ductile Iron
- Screen: Stainless Steel SS304
- Bolts, Nuts & Washers: Stainless Steel SS304 (A2-70)
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet
Dimensions - Inches
| Size | L | D | K | B | n-d | H (±¾") |
|---|---|---|---|---|---|---|
| 2" | 8.9 | 6 | 4.8 | 0.6 | 4-19 (3/4") | 5.3 |
| 3" | 11.5 | 7.5 | 6 | 0.8 | 4-19 (3/4") | 6.8 |
| 4" | 13.9 | 9 | 7.5 | 0.9 | 8-19 (3/4") | 8.1 |
| 6" | 18.5 | 11 | 9.5 | 1 | 8-22 (7/8") | 11 |
| 8" | 21.4 | 13.5 | 11.8 | 1.1 | 8-22 (7/8") | 13.8 |
| 10" | 26 | 16 | 14.3 | 1.2 | 12-25 (1") | 17.2 |
| 12" | 30 | 19 | 17 | 1.3 | 12-25 (1") | 19.9 |
Dimensions - Millimeters
| Size | DN | L | D | K | B | n-d | H (±20) |
|---|---|---|---|---|---|---|---|
| 2" | 50 | 225 | 152 | 120.5 | 16 | 4-19 (3/4") | 135 |
| 3" | 80 | 292 | 191 | 152.5 | 19 | 4-19 (3/4") | 172 |
| 4" | 100 | 352 | 229 | 190.5 | 24 | 8-19 (3/4") | 207 |
| 6" | 150 | 470 | 279 | 241.5 | 25.5 | 8-22 (7/8") | 279 |
| 8" | 200 | 543 | 343 | 298.5 | 29 | 8-22 (7/8") | 350 |
| 10" | 250 | 660 | 406 | 362 | 30.5 | 12-25 (1") | 436 |
| 12" | 300 | 762 | 483 | 432 | 32 | 12-25 (1") | 506 |
