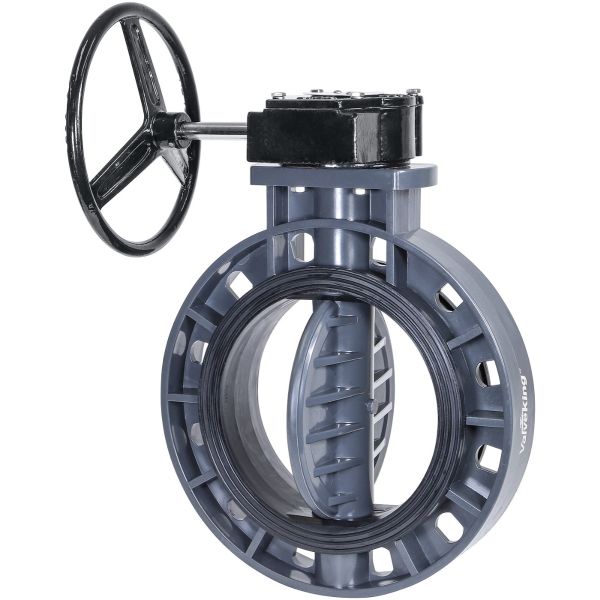

10" PVC Butterfly Valve Wafer Style - EPDM Seat, Gear Operated
was
$759.15
Special Price
$391.58
PVC plastic butterfly valve with EPDM seat, wafer style.
| Size | 10" |
|---|---|
| Body Material | PVC |
| Body Design | Wafer |
| Operation | Gearbox |
| Connections | Flange / ANSI 125 |
| Pressure Rating | 90 PSI |
| Weight | 56 lbs |
Availability:
In stock
SKU
VK-BFP-110G
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
10" PVC Butterfly Valve Wafer Style - EPDM Seat, Gear Operated
The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed. Needs to be installed with flanges. No need for gaskets since they already have a rubber seal.
Features:
- Excellent corrosion resistance
- Gearbox operator is self-locking in any position for throttle control
- Does not require flange gaskets thanks to EPDM seat
Material:
- Body: uPVC
- Disc: uPVC
- Seat: EPDM
- Stem: Carbon Steel
- Handwheel: Painted Cast Iron
Download Specification Sheet
Dimensions - Inches
| Size | DN | ØD | L | P.C.D. ØD1 | n-Øe | ØD2 | H | H1 | H2 | L1 | ØD3 | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6" | 6 | 11.3 | 2.8 | 9.5 | 8-Ø23 | 5.8 | 19.3 | 7.1 | 9.8 | 7.9 | 10.3 | 5.9 | 3.6 |
| 8" | 8 | 13.6 | 3.4 | 11.8 | 8-Ø23 | 7.8 | 21.8 | 8.4 | 11.3 | 7.9 | 10.3 | 5.9 | 3.6 |
| 10" | 10 | 16.3 | 3.9 | 14.3 | 12-Ø23 | 9.7 | 25.4 | 10.3 | 13.4 | 8.7 | 11 | 7.1 | 4.8 |
Dimensions - Millimeters
| Size | DN | ØD | L | P.C.D. ØD1 | n-Øe | ØD2 | H | H1 | H2 | L1 | ØD3 | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6" | 150 | 288 | 70 | 241 | 8-Ø23 | 146 | 489 | 180 | 250 | 200 | 260 | 150 | 90 |
| 8" | 200 | 344 | 88 | 298 | 8-Ø23 | 199 | 552 | 215 | 285 | 200 | 260 | 150 | 90 |
| 10" | 250 | 412 | 98 | 362 | 12-Ø23 | 246 | 646 | 260 | 340 | 220 | 280 | 180 | 120 |
| Flange Connection | flange_connection |
|---|
