10" Ductile Iron Butterfly Valve Flanged Centric - EPDM Seat, Gear Operated
was
$1,299.15
Special Price
$738.56

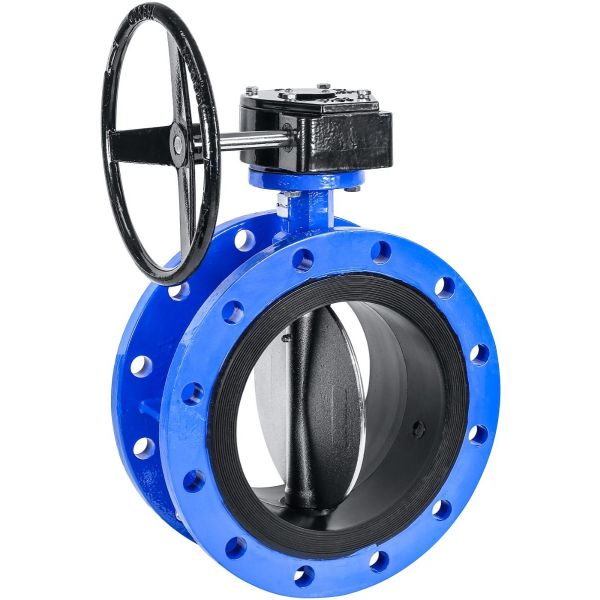

Ductile iron flanged butterfly valve with nickel plated ductile iron disc and EPDM seat.
| Size | 10" |
|---|---|
| Body Material | Ductile Iron |
| Body Design | Flanged - Centric |
| Operation | Gearbox |
| Connections | Flange / ANSI 125/150 |
| Pressure Rating | 230 PSI |
| Temperature Rating | -4° to 194° F |
| Length (End to End) | 6.5" |
| Weight | 131 lbs |
Availability:
In stock
Only 4 left
SKU
VK-BF-310G
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
10" Ductile Iron Butterfly Valve Flanged Centric - EPDM Seat, Gear Operated
The butterfly valve is a rotary valve in which a disk-shaped seating element is rotated 90° to open or close the flow passage. Can be left partially open or closed for flow throttling. Butterfly valves cannot be used where a non obstructed full opening is needed.
Features:
- Gearbox operator is self-locking in any position for throttle control
- Flanged body design offers dead-end service without the use of a downstream companion flange
- Fusion-Bonded Epoxy Coating
Material:
- Body: Cast Iron
- Disc: Nickel Plated Ductile Iron
- Seat: EPDM
- Stem: Stainless Steel SS416
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet

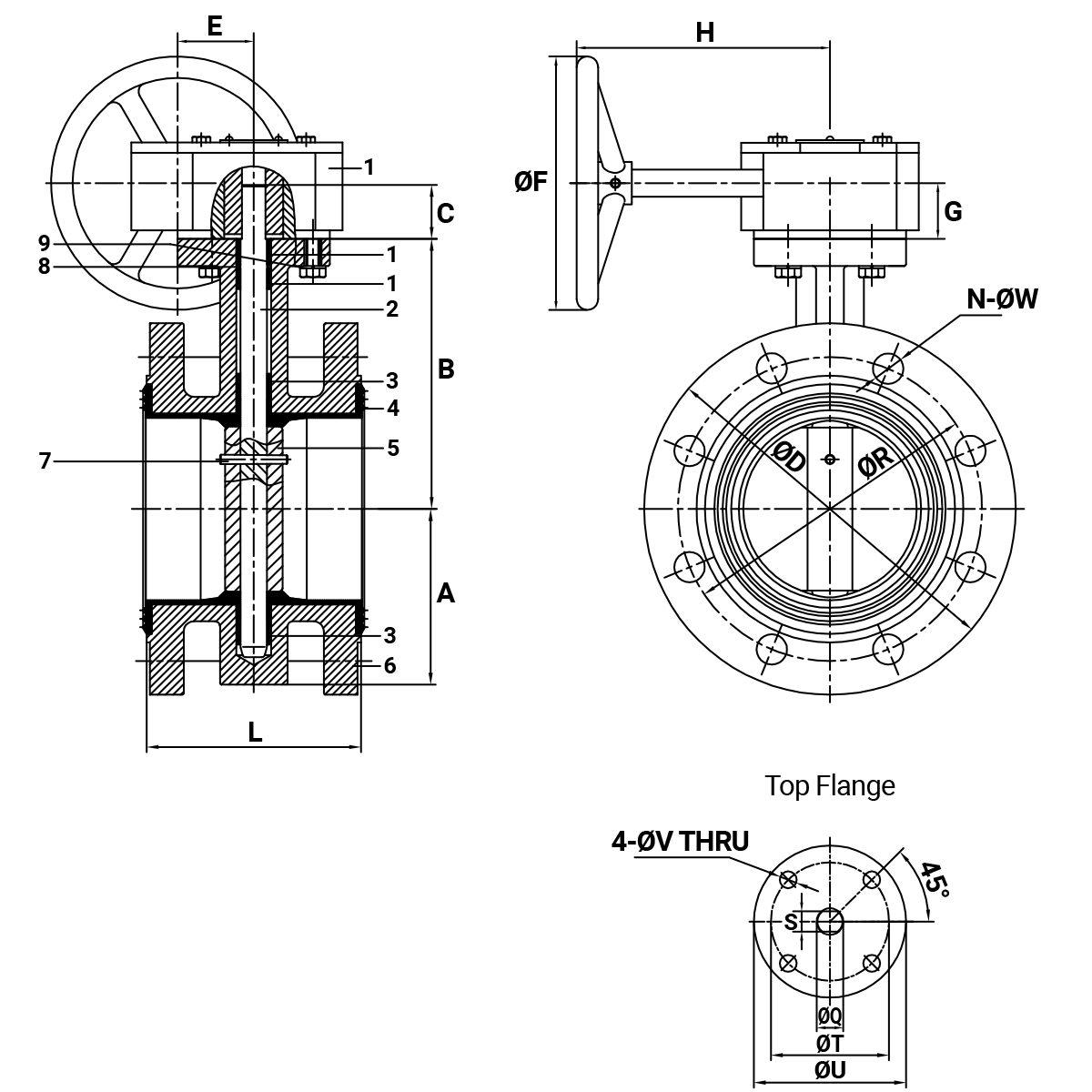

Dimensions - Inches
| Size | A | B | C | ⌀D | ⌀R | N-⌀W | E | ⌀F | G | H | L | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 3.4 | 5.9 | 1.3 | 7.5 | 6 | 4-19 (3/4") | 1.8 | 5.3 | 1.1 | 5.5 | 4.5 | 0.5 | 0.4 | 3.6 | 2.8 | 0.4 |
| 4" | 4.1 | 6.3 | 1.3 | 9 | 7.5 | 4-19 (3/4") | 1.8 | 5.3 | 1.1 | 5.5 | 5 | 0.6 | 0.5 | 3.6 | 2.8 | 0.4 |
| 6" | 5.1 | 7.9 | 1.3 | 11 | 9.5 | 8-22 (7/8") | 1.8 | 5.3 | 1.1 | 5.5 | 5.5 | 0.8 | 0.6 | 3.6 | 2.8 | 0.4 |
| 8" | 6.3 | 9.1 | 1.5 | 13.5 | 11.8 | 8-22 (7/8") | 2.4 | 10.8 | 1.6 | 8.3 | 6 | 0.9 | 0.7 | 4.9 | 4.1 | 0.4 |
| 10" | 7.6 | 10.3 | 1.5 | 16 | 14.3 | 12-25 (1") | 2.4 | 10.8 | 1.6 | 8.3 | 6.5 | 1.1 | 0.9 | 4.9 | 4.1 | 0.4 |
| 12" | 8.7 | 11.8 | 1.5 | 19 | 17 | 12-25 (1") | 3.1 | 10.8 | 1.6 | 8.7 | 7 | 1.3 | 0.9 | 4.9 | 4.1 | 0.4 |
Dimensions - Millimeters
| Size | A | B | C | ⌀D | ⌀R | N-⌀W | E | ⌀F | G | H | L | ⌀Q | S | ⌀T | ⌀U | ⌀V |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3" | 85 | 150 | 32 | 191 | 152.4 | 4-19 (3/4") | 44 | 135 | 28 | 139 | 114 | 12.7 | 10 | 90 | 70 | 9.5 |
| 4" | 104 | 160 | 32 | 229 | 190.5 | 4-19 (3/4") | 44 | 135 | 28 | 139 | 127 | 15.88 | 12 | 90 | 70 | 9.5 |
| 6" | 130 | 200 | 32 | 279 | 241 | 8-22 (7/8") | 44 | 135 | 28 | 139 | 140 | 19.05 | 14 | 90 | 70 | 9.5 |
| 8" | 160 | 230 | 38 | 343 | 298 | 8-22 (7/8") | 62 | 275 | 40 | 211 | 152 | 22.23 | 17 | 125 | 105 | 11.5 |
| 10" | 194 | 260 | 38 | 406 | 362 | 12-25 (1") | 62 | 275 | 40 | 211 | 165 | 28.58 | 22 | 125 | 105 | 11.5 |
| 12" | 220 | 300 | 38 | 483 | 432 | 12-25 (1") | 78 | 275 | 40 | 220 | 178 | 31.75 | 24 | 125 | 105 | 11.5 |
| Flange Connection | flange_connection |
|---|
