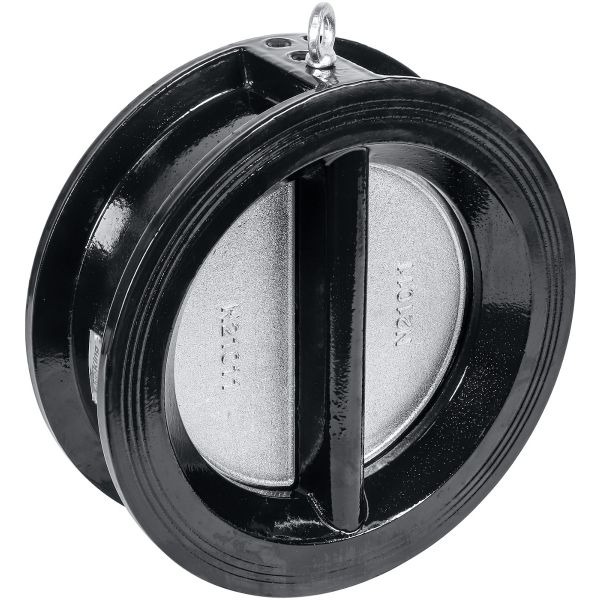

10" Cast Iron Wafer Check Valve - Double Wing
was
$887.01
Special Price
$371.75
Dual plate wafer check valve with EPDM seat, epoxy coated cast iron body, and nickel plated ductile iron discs.
| Size | 10" |
|---|---|
| Mechanism | Dual Swing Plates (Spring Loaded) |
| Connections | Flange / ANSI 125/150 |
| Pressure Rating | 150 PSI |
| Length (End to End) | 4.5" |
| Weight | 54 lbs |
Availability:
In stock
SKU
RKCV-10
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
10" Cast Iron Wafer Check Valve - Double Wing
Features:
- Compact wafer design can be installed in tight spaces
- Can be mounted horizontally or vertically
- Fusion-Bonded Epoxy Coating
Material:
- Body: Cast Iron
- Disc: Nickel Plated Ductile Iron
- Seat: EPDM
- Stem: Stainless Steel SS416
- Spring: Stainless Steel AISI 304
- Paint: Fusion-Bonded Epoxy
Download Specification Sheet

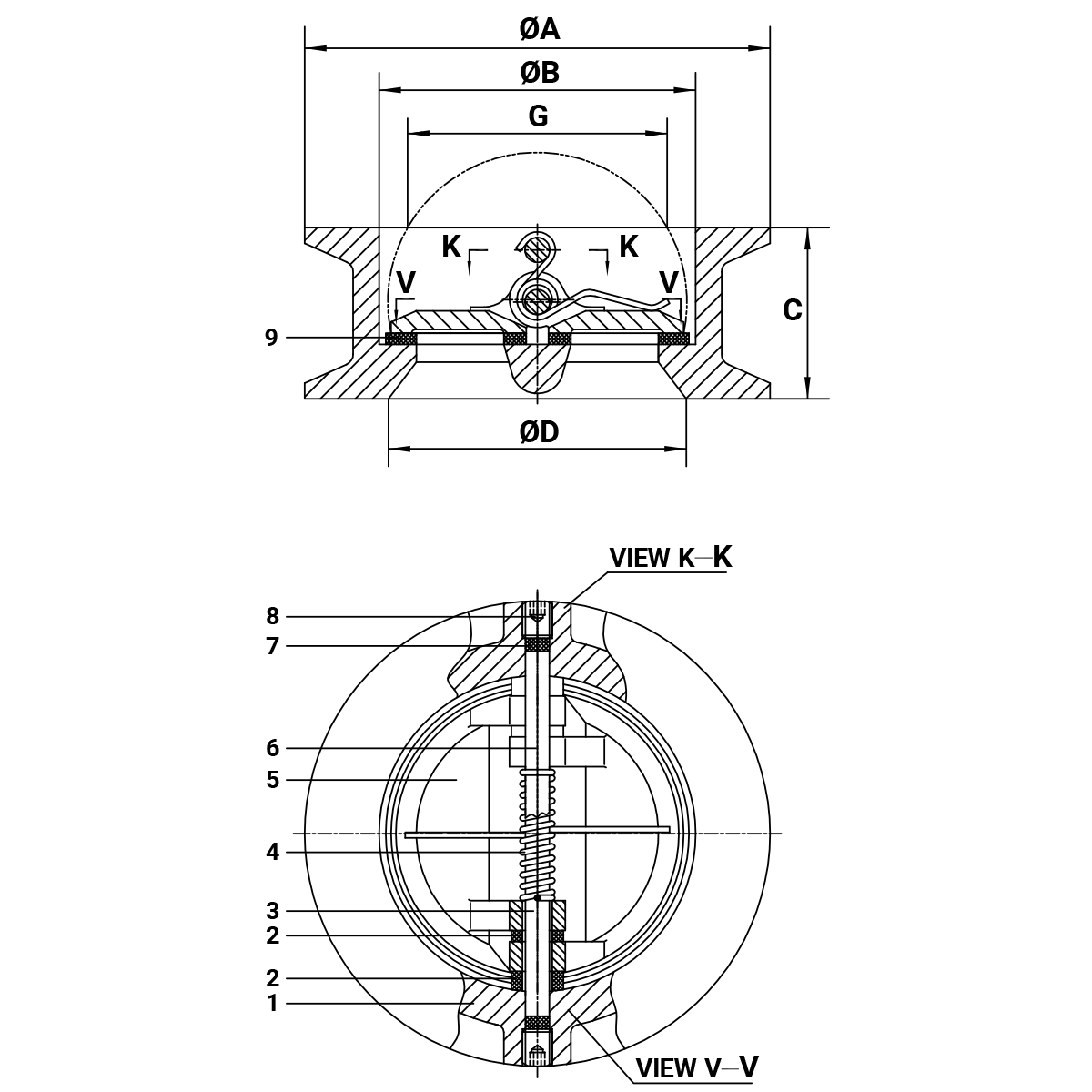

Dimensions - Inches
| Size | A | B | C | D | G |
|---|---|---|---|---|---|
| 2" | 4.1 | 2.6 | 1.7 | 2.3 | 0.8 |
| 3" | 5.4 | 3.7 | 2.5 | 3.4 | 3 |
| 4" | 6.9 | 4.6 | 2.5 | 4.3 | 3.8 |
| 6" | 8.8 | 6.7 | 3 | 6.7 | 5.7 |
| 8" | 11 | 8.8 | 3.5 | 8.8 | 7.6 |
| 10" | 13.4 | 10.4 | 4.5 | 10.4 | 9.4 |
| 12" | 16.1 | 12.2 | 4.5 | 12.2 | 10.2 |
Dimensions - Millimeters
| Size | A | B | C | D | G |
|---|---|---|---|---|---|
| 2" | 105 | 65 | 43 | 59 | 20 |
| 3" | 137 | 94 | 64 | 88 | 76 |
| 4" | 175 | 117 | 64 | 110 | 97 |
| 6" | 222 | 170 | 76 | 170 | 145 |
| 8" | 279 | 224 | 89 | 222 | 193 |
| 10" | 340 | 265 | 114 | 264 | 239 |
| 12" | 410 | 310 | 114 | 310 | 259 |
| Flange Connection | flange_connection |
|---|
