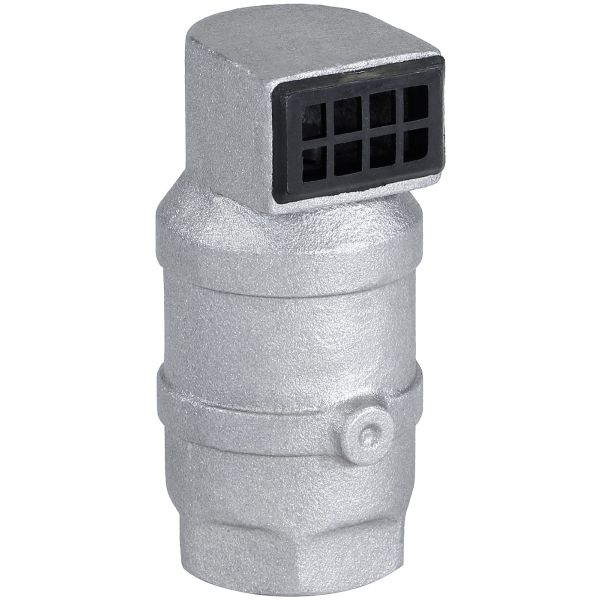

1" Aluminum Air Vent
$13.04
1" Simple Action Aluminum Air Release/Vacuum Relief Vent
| Size | 1" |
|---|---|
| Inlet Connection | FNPT |
| Valve Action | Air Expulsion & Admission |
| Max Pressure | 150 PSI |
| Sealing Pressure | 5 PSI |
Availability:
In stock
SKU
RKARV-100
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
1" Simple Action Aluminum Air Release/Vacuum Relief Vent
Features:
- Simple design ensures trouble-free performance
- Cast aluminum body combines the dual advantage of being lightweight as well as provides corrosion resistance
- Synthetic rubber seal assures positive rubber seal, even with low head applications
Material:
- Body: Aluminum
Download Specification Sheet
Dimensions - Inches
| Size | Nominal | Clear Opening Diameter | Height | Width | Weight |
|---|---|---|---|---|---|
| 1" | 1 | 0.7 | 4.2 | 2.2 | 0.55 lbs |
| 1-1/2" | 1.5 | 1.2 | 4.9 | 3.3 | 1.16 lbs |
| 2" | 2 | 1.9 | 5.8 | 3.4 | 1.65 lbs |
| 3" | 3 | 2.6 | 7.9 | 4.9 | 3.63 lbs |
| 4" | 4 | 3.4 | 9.8 | 7.1 | 6.72 lbs |
Dimensions - Millimeters
| Size | Nominal | Clear Opening Diameter | Height | Width | Weight |
|---|---|---|---|---|---|
| 1" | 25.4 | 17 | 106.5 | 55 | 0.55 lbs |
| 1-1/2" | 38.1 | 29.5 | 123.5 | 82.5 | 1.16 lbs |
| 2" | 50.8 | 48 | 145.5 | 88 | 1.65 lbs |
| 3" | 76.2 | 64.5 | 200 | 124 | 3.63 lbs |
| 4" | 101.6 | 87 | 247.5 | 180.5 | 6.72 lbs |
