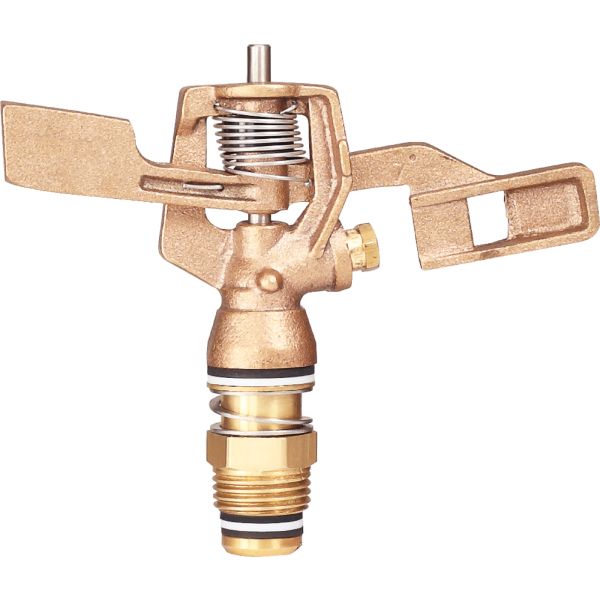

RK-23LA7 Brass Impact Sprinkler – 1/2" MNPT Full Circle 7° Low Angle
was
$35.04
Special Price
$13.67
The RK-23LA7 delivers an extremely flat 7° trajectory for situations where wind interference, low canopy clearance, or frost protection requirements demand water be kept as close to ground level as possible. It is well suited to under-tree microclimate irrigation, frost control in orchards, and exposed field sites with persistent wind.
| Connection | 1/2" MNPT |
|---|---|
| Coverage Pattern | Full Circle |
| Trajectory | 7° Low Angle |
| Nozzle | 1/8" |

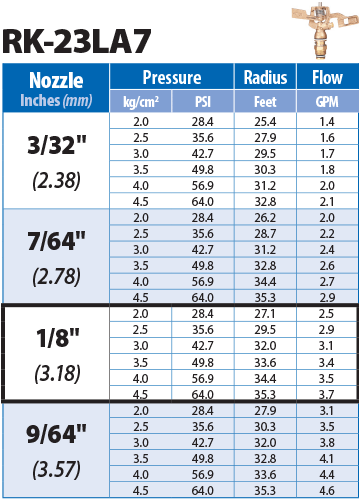

| Flow Range | 1.4–4.6 GPM |
| Radius | 25–35 ft |
| Pressure Range | 30–65 PSI |
| Body / Arm | Bronze |
| Nut / Tube | Brass |
| Spring / Pin | Stainless Steel |
| Drive | Spring Arm Impact |
Availability:
In stock
SKU
RK-23LA7
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RK-23LA7 – 1/2" MNPT Full Circle Brass Impact Sprinkler (7° Low Angle)
The RK-23LA7 is a 1/2" MNPT brass impact sprinkler with an ultra-low 7° trajectory. With a flow range of 1.4–4.6 GPM and a radius of 25–35 ft at 30–65 PSI, it is designed for applications where the water stream must stay close to the ground — such as under-tree orchard irrigation, frost protection, and high-wind field conditions.
Key Features and Benefits
- 7° ultra-low trajectory — the flattest arc in the RK-23 family, resisting wind drift even in exposed locations and keeping water under low canopies.
- Full-circle pattern — provides even distribution around each riser for consistent crop coverage.
- Bronze body and arm — durable in continuous-run and chemigation service.
- Brass nut and tube — precise nozzle alignment maintained over long service intervals.
- Stainless steel spring and pin — corrosion-resistant impact drive for reliable, low-maintenance operation.
- 30–65 PSI operating range — fits standard farm system pressures without additional regulation.
Construction
Bronze body and arm, brass nut and tube, stainless steel spring and pin. Spring arm impact drive.
| Base | 1/2" MNPT |
|---|
