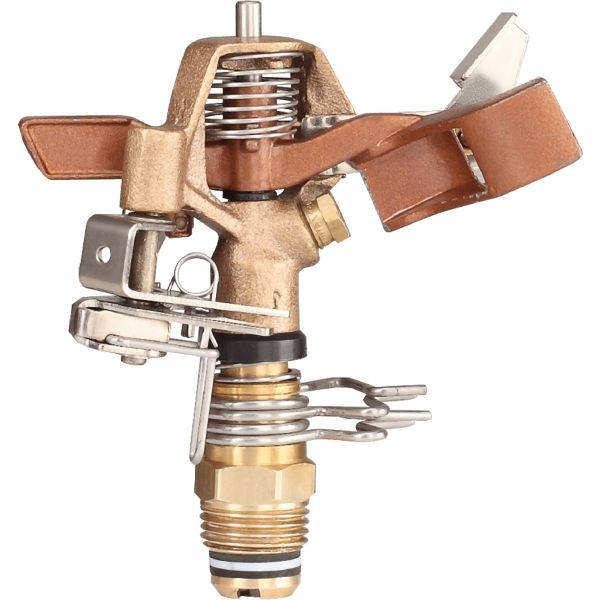

RK-25D Brass Impact Sprinkler – 1/2" MNPT Part Circle 25° with Deflector
was
$42.16
Special Price
$29.02
The RK-25D is a part-circle brass impact sprinkler fitted with a deflector for applications requiring a broken or diffused water pattern at the field edge. It is suited to boundary rows, windbreak strips, and any location where a standard throw would overshoot the target area.
| Connection | 1/2" MNPT |
|---|---|
| Coverage Pattern | Part Circle |
| Trajectory | 25° |
| Nozzle | 5/32" |
| Deflector | Yes |
| Body / Arm | Bronze |
| Nut / Tube | Brass |
| Spring / Pin | Stainless Steel |
| Drive | Spring Arm Impact |
Availability:
In stock
SKU
RK-25D
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RK-25D – 1/2" MNPT Part Circle Brass Impact Sprinkler (25°) with Deflector
The RK-25D is a 1/2" MNPT part-circle brass impact sprinkler with a 5/32" nozzle and a built-in deflector. The deflector breaks up the water stream to shorten and spread the throw pattern, making the RK-25D well suited for field perimeter rows, windbreak strips, and compact planting areas where a full-length throw would overshoot.
Key Features and Benefits
- Deflector attachment — disperses the water stream at the nozzle exit, reducing effective radius and softening application intensity for sensitive border plantings.
- Part-circle arc — restricts coverage to the irrigated zone to avoid wasting water outside field boundaries.
- Bronze body and arm — corrosion-resistant for continuous agricultural use.
- Brass nut and tube — consistent nozzle alignment over long service intervals.
- Stainless steel spring and pin — reliable impact drive with minimal maintenance.
Construction
Bronze body and arm, brass nut and tube, stainless steel spring and pin. Spring arm impact drive.

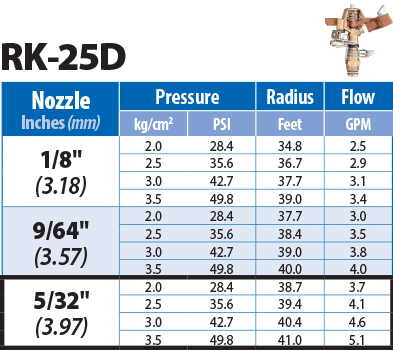

RK-25D Technical Data & Performance Chart
| Base | 1/2" MNPT |
|---|
