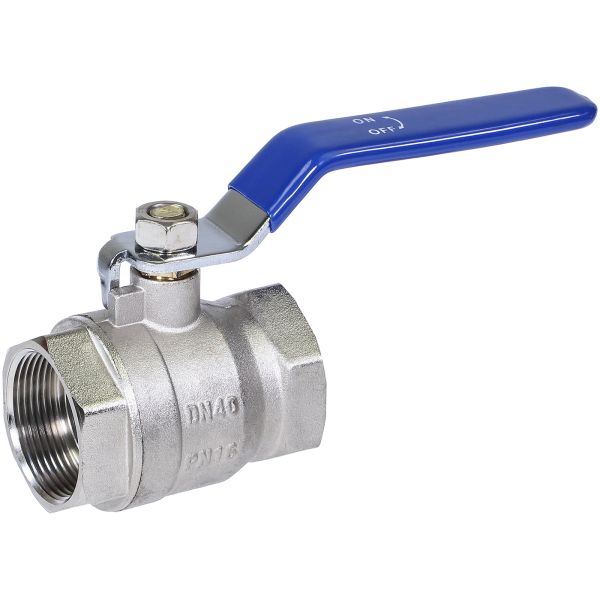

1-1/2" Nickel Plated Brass Ball Valve – FNPT Threaded – PN16
was
$55.92
Special Price
$34.42
1-1/2" nickel plated brass ball valve with FNPT threaded connections — provides full-port on/off flow control for irrigation mainlines, manifolds, and distribution piping. Quarter-turn lever operation for fast open/close. Rated PN16 (232 PSI). Nickel plating protects the brass body from tarnishing and surface corrosion.
| Size | 1-1/2" |
|---|---|
| Connection | 1-1/2" FNPT (both ends) |
| Pressure Rating | PN16 (232 PSI) |
| Material | Nickel Plated Brass |
Note: Product contains brass which does not meet federal and state requirements for drinking water applications.
Availability:
In stock
SKU
RKBB15
Ships Same Day
All orders placed by 12 PM local warehouse time will ship the same day. Some exclusions apply. Delivery time may increase if item isn't available in closest warehouse.
Delivery time: 2-4 business days
RKBB15 – 1-1/2" Nickel Plated Brass Ball Valve, FNPT
The RKBB15 is a 1-1/2" nickel plated brass ball valve with FNPT threaded connections on both ends. The full-port design provides unrestricted flow when open, and the quarter-turn lever provides fast, positive on/off control. Rated PN16 (232 PSI).
Key Features & Benefits
- Full-port design — unrestricted flow when open with minimal pressure drop
- Nickel plated brass — nickel plating protects the brass body from tarnishing and surface corrosion; brass provides excellent durability
- FNPT threaded connections — threads onto standard male pipe threads for easy installation on irrigation systems
- Quarter-turn lever — fast open/close with clear visual position indication
- PN16 pressure rating (232 PSI) — handles standard irrigation operating pressures with a safety margin
Note: Product contains brass which does not meet federal and state requirements for drinking water applications.
Download Specification Sheet
Dimensions - Inches
| Size | B | H | L1 | L | DN |
|---|---|---|---|---|---|
| 1" | 4.3 | 2.3 | 0.5 | 2.6 | 0.9 |
| 1-1/2" | 5.5 | 3.3 | 0.6 | 3.2 | 1.4 |
| 2" | 5.5 | 3.4 | 0.9 | 4.1 | 1.6 |
| 3" | 9.6 | 4.8 | 1.1 | 5.4 | 2.4 |
| 4" | 9.6 | 5.5 | 1.1 | 6.5 | 3.6 |
Dimensions - Millimeters
| Size | B | H | L1 | L | DN |
|---|---|---|---|---|---|
| 1" | 110 | 57 | 13 | 65 | 23 |
| 1-1/2" | 139 | 84 | 16 | 81 | 35 |
| 2" | 139 | 88 | 22 | 103 | 42 |
| 3" | 245 | 121 | 27 | 137 | 62 |
| 4" | 245 | 140 | 28 | 165 | 90 |
